CAR REAR VIEW CAMERA
HD Wide Angle Car Rear View Reverse Parking Camera with CCD Technology.
Brand New Products.
Description:
Compatible with all vehicle types.
Should be installed at proper positions on the vehicle and used with a Monitor/GPS/Parking Sensor etc.
When used for rear view (eversing), connect it to the Reverse Lights terminals.
Has a Monitor image function working and this kind of image function also could be used for front view and side view.
Note: The camera switch is controlled by the reverse gear shift.
Specifications:
TV system: PAL/NTSC optional
Effective Pixels: PAL: 628 x 586 pixels NTSC 510 x 496 pixels
Horizontal Resolutions: 480 TV lines
Video Output: RCA Connector, 1.0V P-P, 75 ohm
Power Consumption: 110mA,max 300mA with IR on
Power Supply: DC12V
Operating Temperature: -20 ~ +90°C RH95 percent MAX
Storage Temperature: -30 ~ +80°C RH95 percent MAX
Lens angle: 170°
Waterproof: IP67/IP68
Shockproof, Dustproof.
IR Night Vision: 0.5 illumination using a light that only the camera can pick up.
Simple and easy to install.
Note:
Before installing it on your car, please try to use it to know what side is up and down because some cameras are round or square without any stent, which we can not point out the installed direction.
Hope you can understand in case of unnecessary dispute.

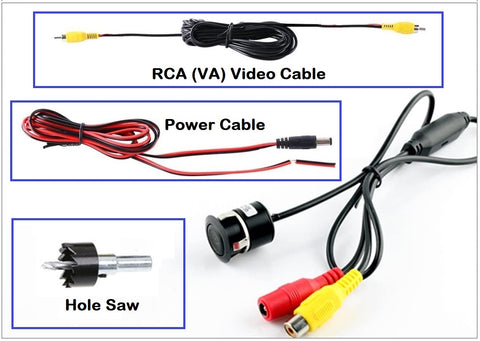

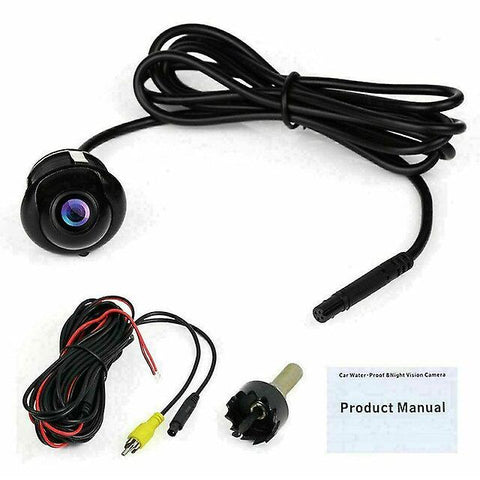

What's in the box:
1 x Rear View Camera
1 x Power Cable
1 x Video Cable
1 x Drill
1 x User Manual
Brand New Products.
Description:
Compatible with all vehicle types.
Should be installed at proper positions on the vehicle and used with a Monitor/GPS/Parking Sensor etc.
When used for rear view (eversing), connect it to the Reverse Lights terminals.
Has a Monitor image function working and this kind of image function also could be used for front view and side view.
Note: The camera switch is controlled by the reverse gear shift.
Specifications:
TV system: PAL/NTSC optional
Effective Pixels: PAL: 628 x 586 pixels NTSC 510 x 496 pixels
Horizontal Resolutions: 480 TV lines
Video Output: RCA Connector, 1.0V P-P, 75 ohm
Power Consumption: 110mA,max 300mA with IR on
Power Supply: DC12V
Operating Temperature: -20 ~ +90°C RH95 percent MAX
Storage Temperature: -30 ~ +80°C RH95 percent MAX
Lens angle: 170°
Waterproof: IP67/IP68
Shockproof, Dustproof.
IR Night Vision: 0.5 illumination using a light that only the camera can pick up.
Simple and easy to install.
Note:
Before installing it on your car, please try to use it to know what side is up and down because some cameras are round or square without any stent, which we can not point out the installed direction.
Hope you can understand in case of unnecessary dispute.
What's in the box:
1 x Rear View Camera
1 x Power Cable
1 x Video Cable
1 x Drill
1 x User Manual
